Rod Gurganus, formerly with N.C. State’s Plants for Human Health Institute, and Dr. Gary Roberson, Extension specialist in N.C. State’s Department of Biological and Agricultural Engineering, lead the effort to develop more functional, portable hand-washing stations for N.C. growers. They are developing two units (a larger and smaller version) with funding from the N.C. Rural Economic Development Center’s Agricultural Advancement Consortium.

This hand-washing facility has a larger capacity and is intended for commercial use in farm fields. It was designed with six wash stations, meaning six people can wash their hands simultaneously. This unit is designed to be safe for highway travel. Construction costs will vary, as stations may be customized, but the facility featured on this page cost approximately $2,000 to construct, minus the trailer.

While testing this unit in the field, growers indicated a need for a smaller hand-washing unit with less capacity that was easier to deploy, involved fewer costs and could be used at farmers markets. Thus began design and construction of a smaller station. Read more about the smaller hand-washing unit.

(L-R) Dr. Gary Roberson and Rod Gurganus lead the effort to develop more functional, portable hand-washing stations for N.C. growers. They are developing two units (a larger and smaller version) with funding from the N.C. Rural Economic Development Center’s Agricultural Advancement Consortium. *The unit pictured is not a completed product.

(L-R) Dr. Gary Roberson and Rod Gurganus lead the effort to develop more functional, portable hand-washing stations for N.C. growers. They are developing two units (a larger and smaller version) with funding from the N.C. Rural Economic Development Center’s Agricultural Advancement Consortium. *The unit pictured is not a completed product.

hand-washing-008

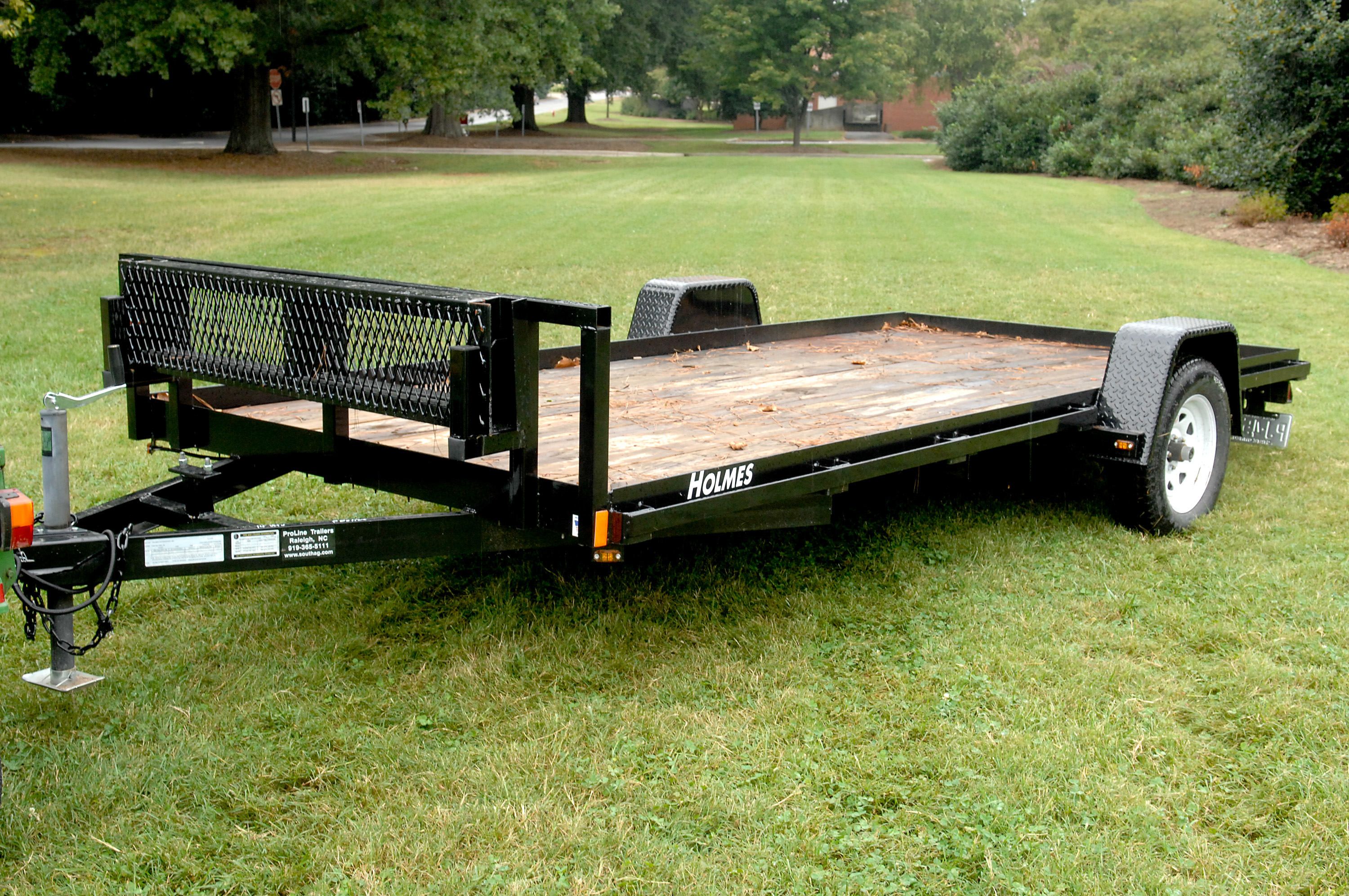

Placing the unit on a trailer is ideal for transportation purposes.Details to consider when purchasing a trailer:

  • Overall size
  • Deck size
  • Transportation capability (highway use)
  • Weight capacity (min. 3,000 lbs. axle).
  • Keep in mind the number of wash stations/faucets you want to include when selecting a size.

hand-washing-029

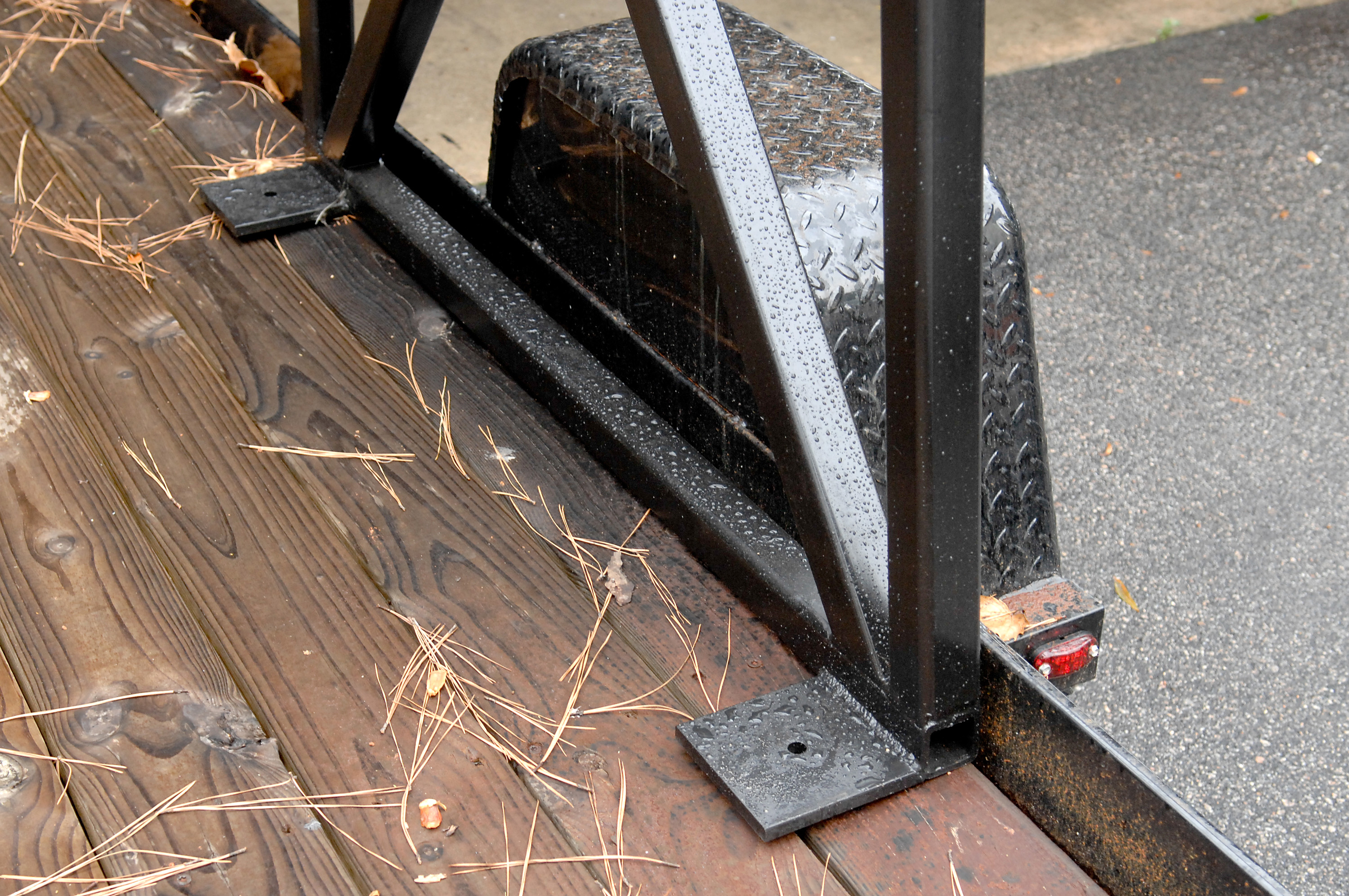

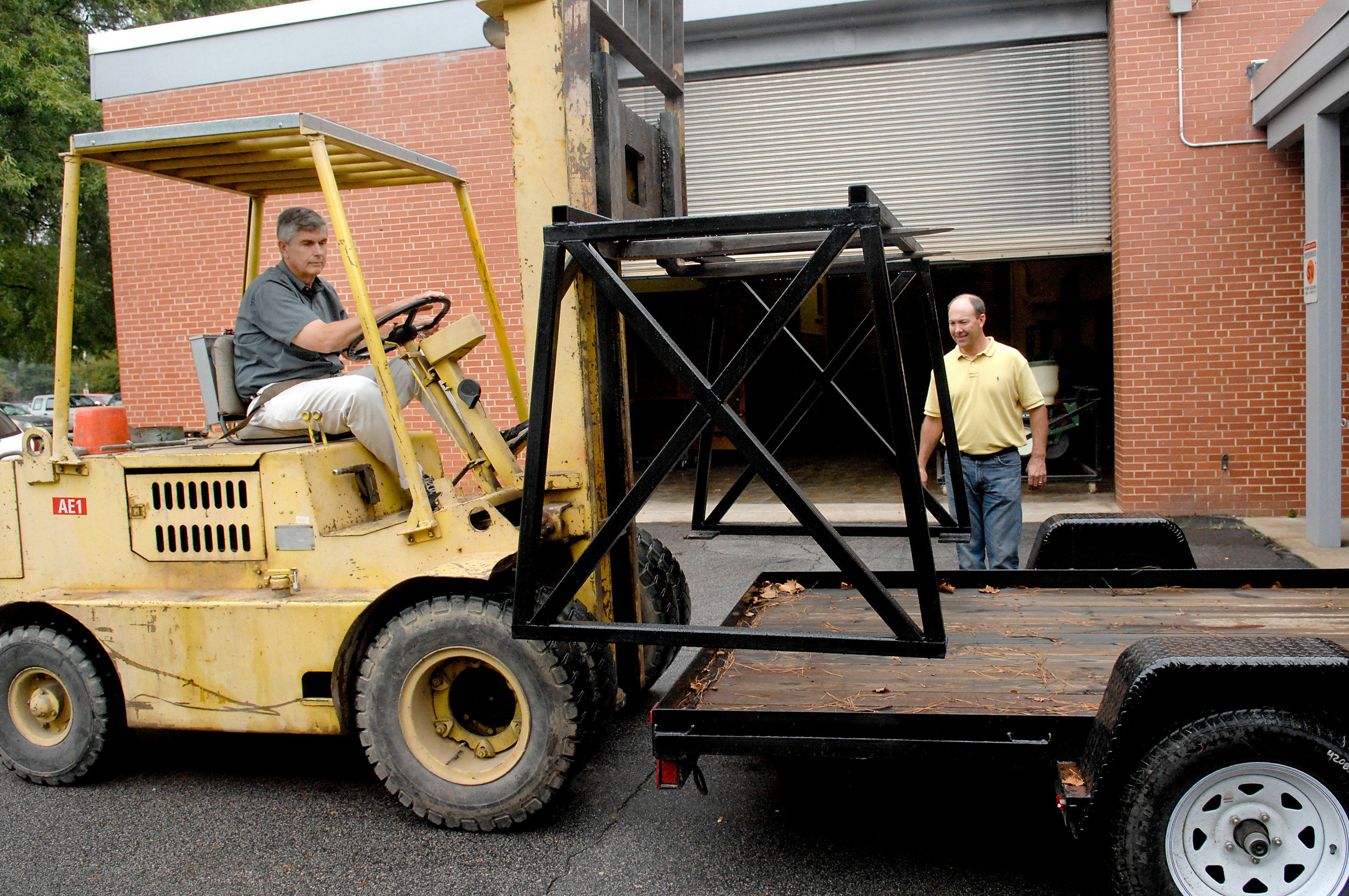

A steel frame was constructed large enough to straddle the drain tank. The frame must be able to support the water supply tank (approx. 1,000 lbs. when full). It must be able to securely hold completely full water tanks during an emergency braking situation.

hand-washing-039

A provision is needed to secure the frame to the trailer deck with bolts for stability and safety. Secure the frame to the trailer bed.

hand-washing-050

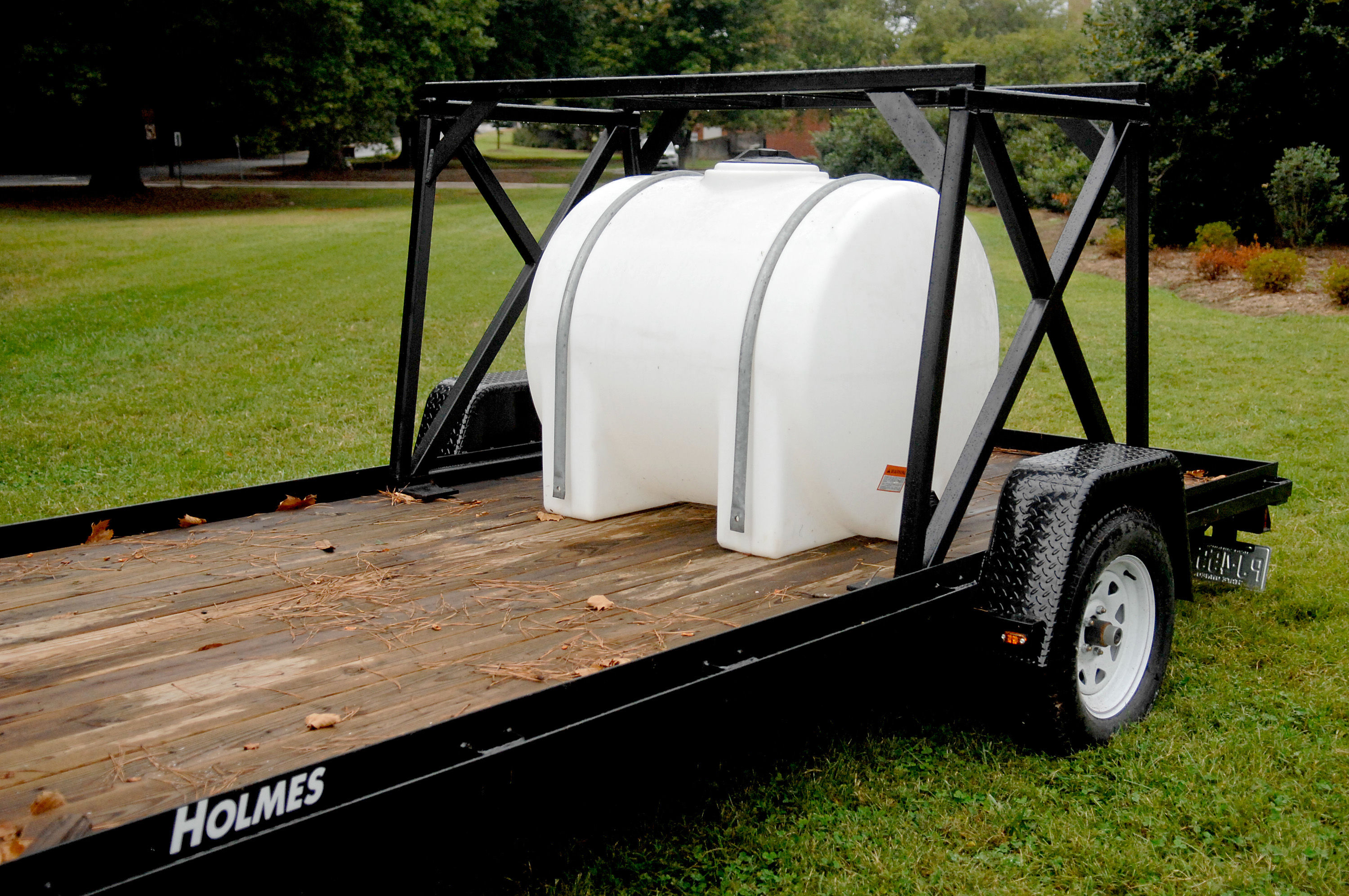

The frame is now straddling the lower/drain water tank and securely bolted to the trailer bed. The drain tank is placed within the frame to capture used water from the supply tank, which will be placed overhead. Growers could consider placing a beam across the bottom of the frame (underneath the drain tank) so that both water tanks are sitting directly on the frame for easy “one piece” removal.

hand-washing-083

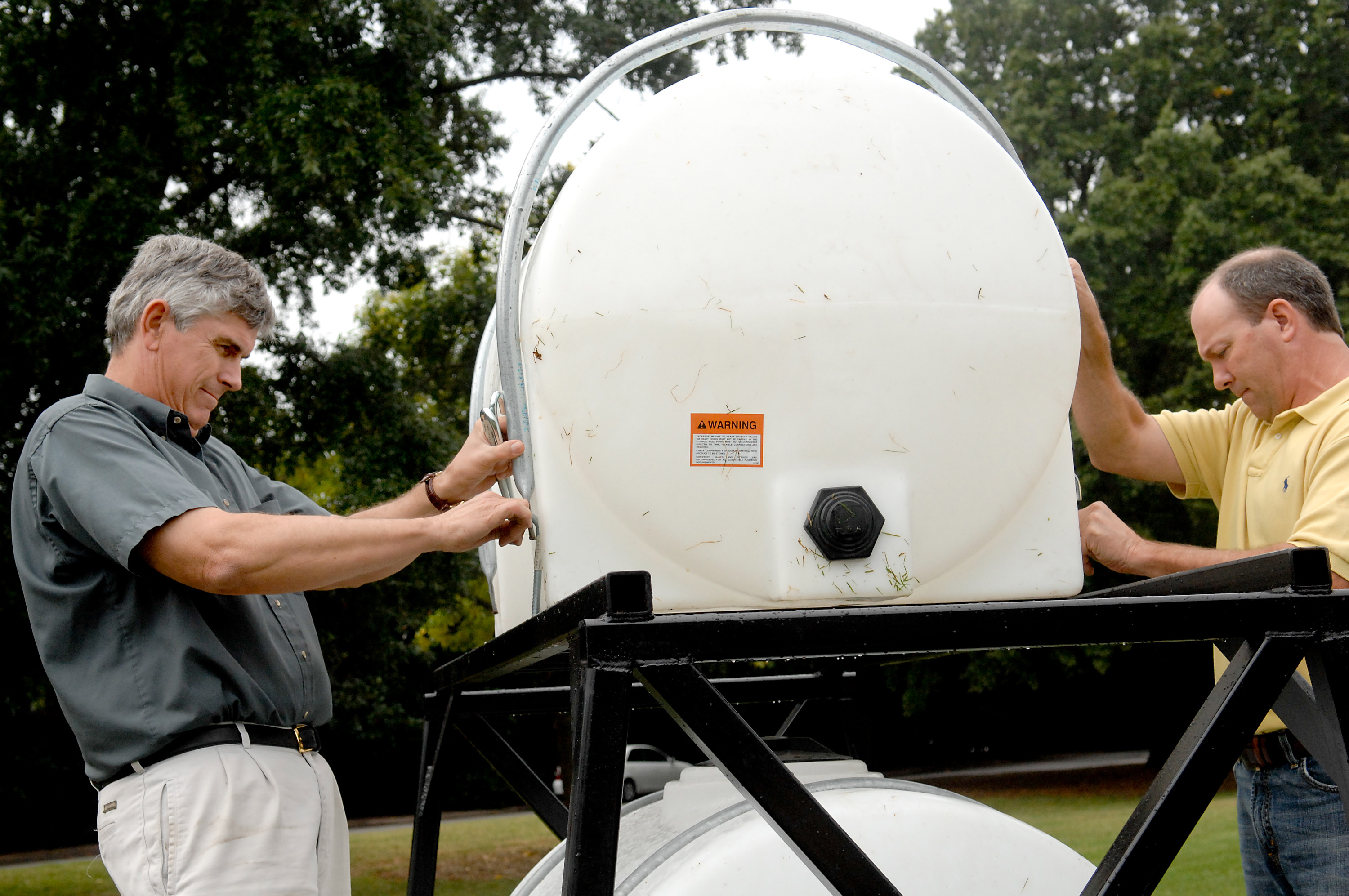

The upper/supply water tank sits on top of the frame. The supply tank contains clean water, which flows downward via gravity and out through the sink into the drain tank.

hand-washing-117

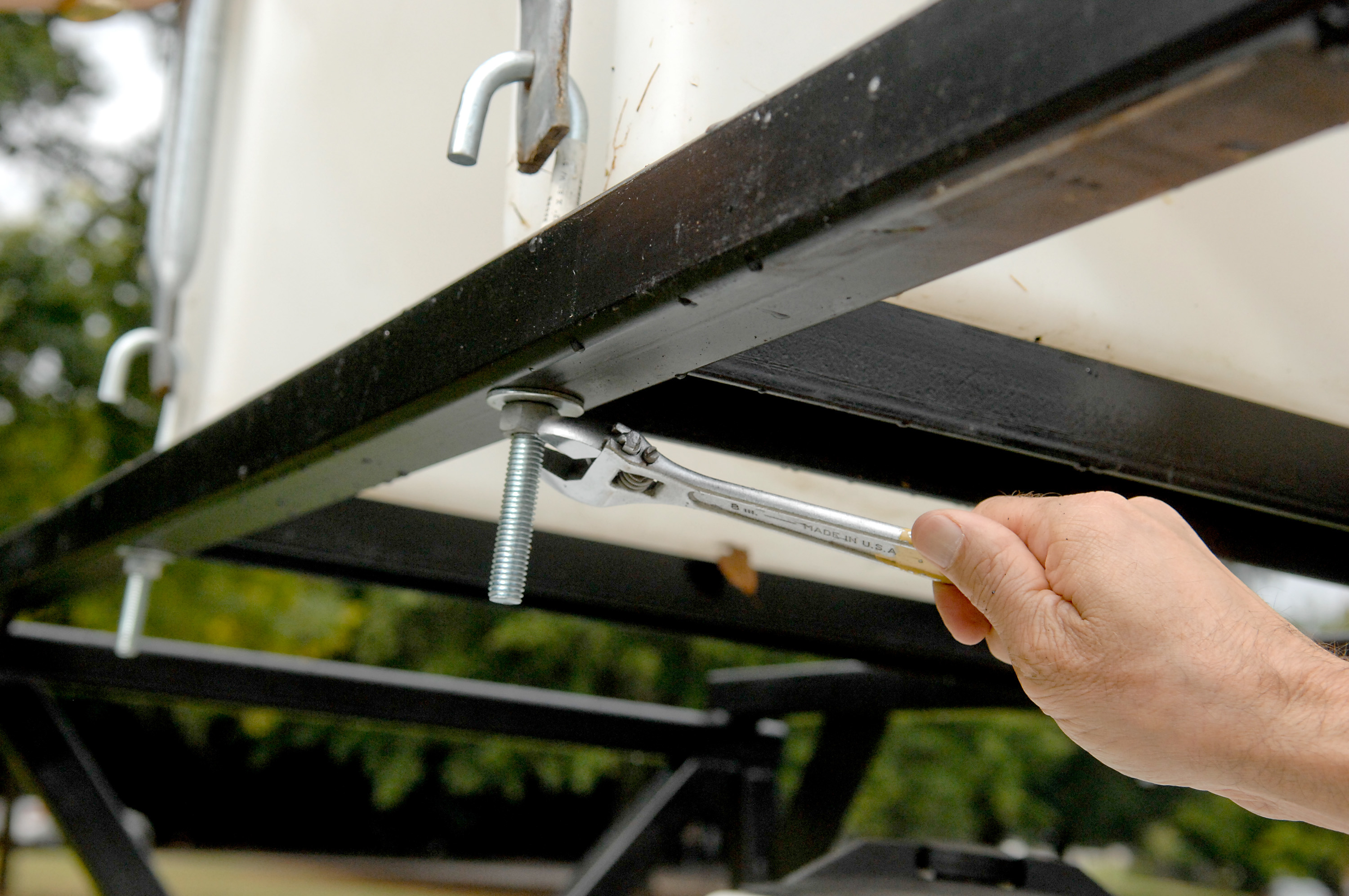

The supply tank is bolted securely on top of the frame. *Use approved hardware as recommended by the tank manufacturer.

handwashing-nov09-015

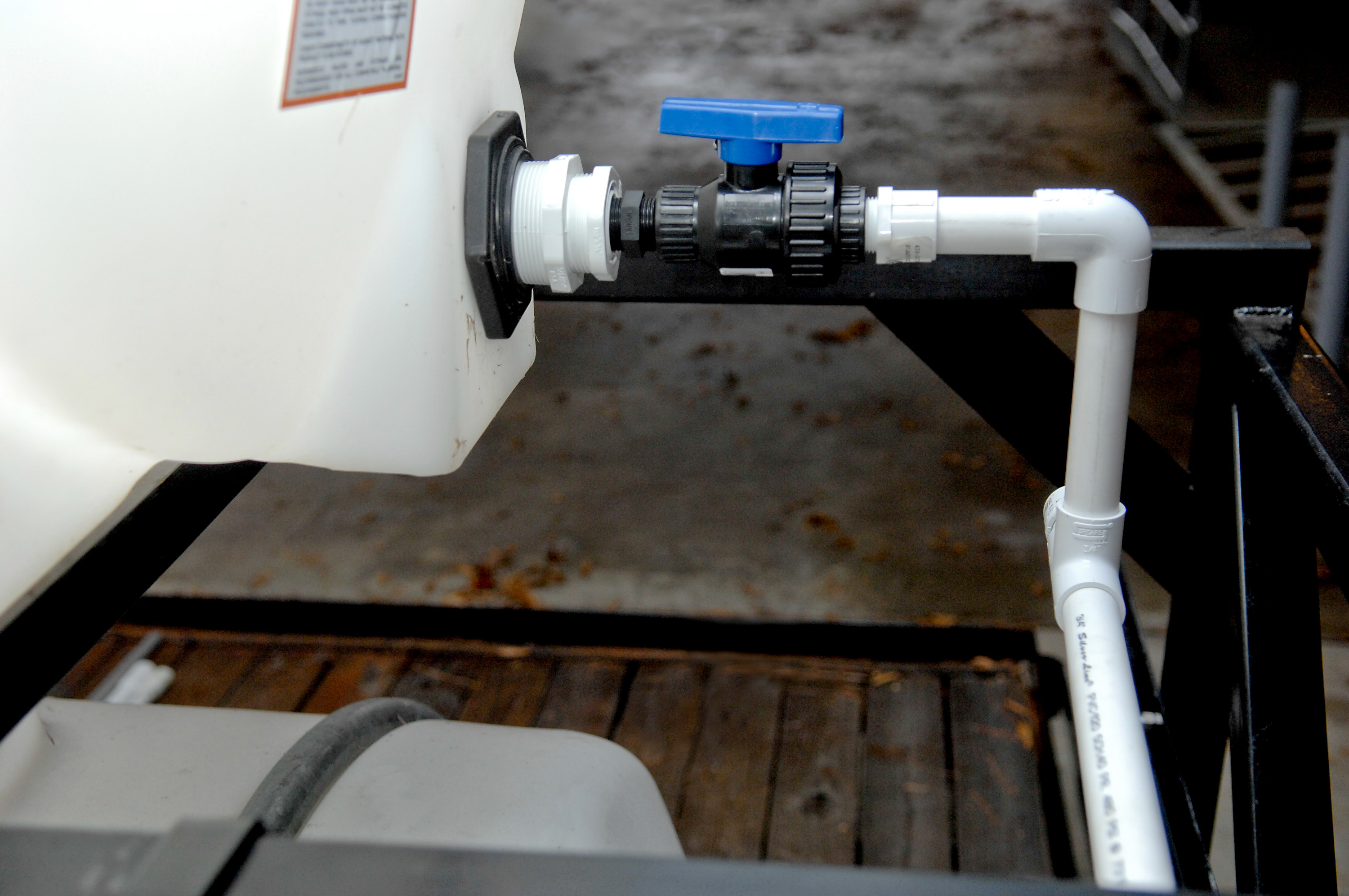

The supply tank is gravity-fed (no pump), so use adequate valves on the supply tank to shut off the water supply.Selection of plumbing materials is largely up to the grower, but it’s important to consider resistance to sunlight and the ability to stand extreme temperatures (i.e. freezing).

handwashing-nov09-080

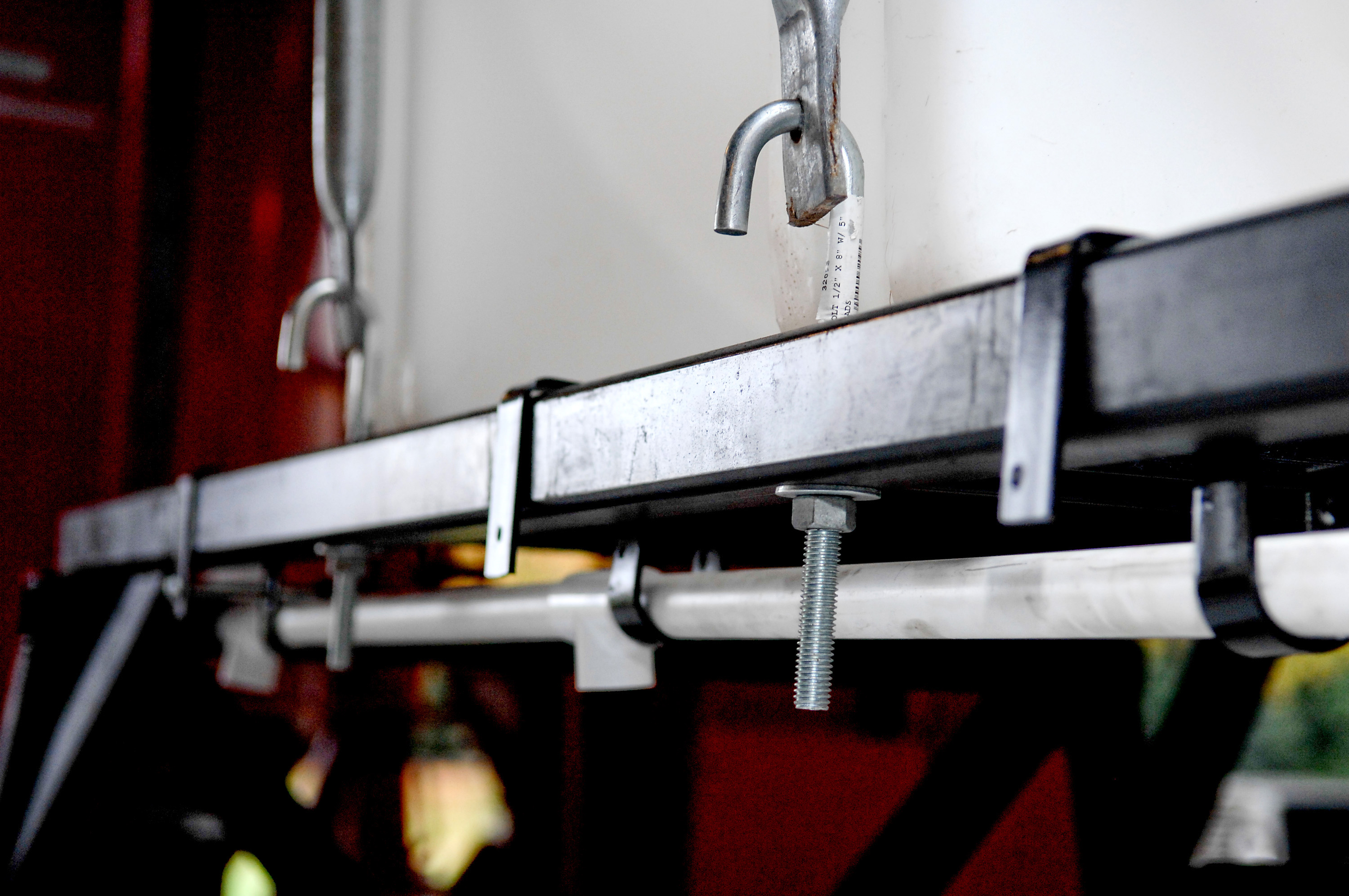

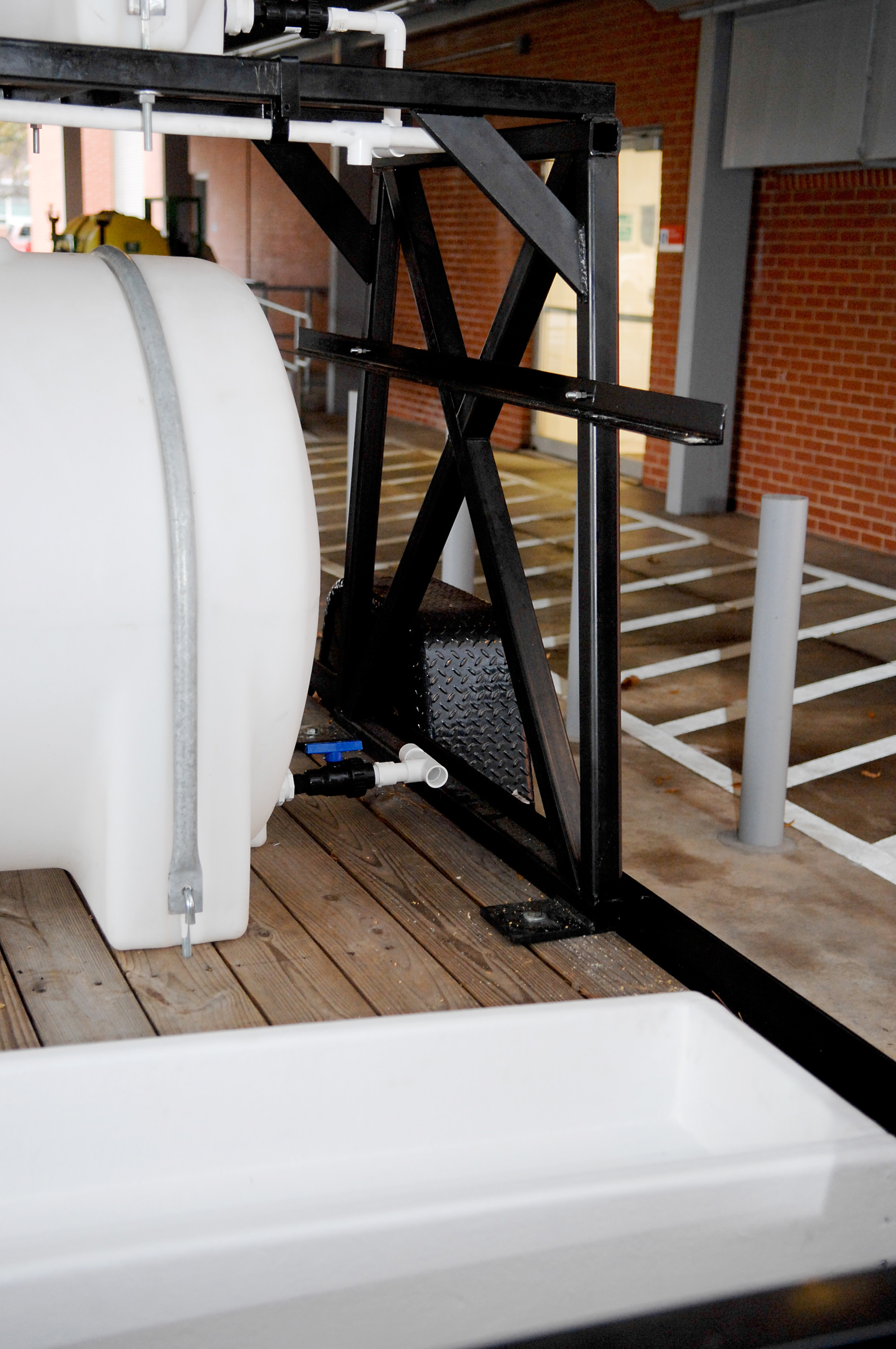

Plumbing materials can be routed under the frame to prevent damage.

Notice the frame arm jutting out to the right. These arms support the wash basin (sink). You must add a bracket to the frame to support the sinks.

handwashing-nov09-053

The sinks were fabricated from lumber and fiberglass to reduce costs, but growers could install sinks purchased from a retailer as an alternative.

hand-wash-station-072

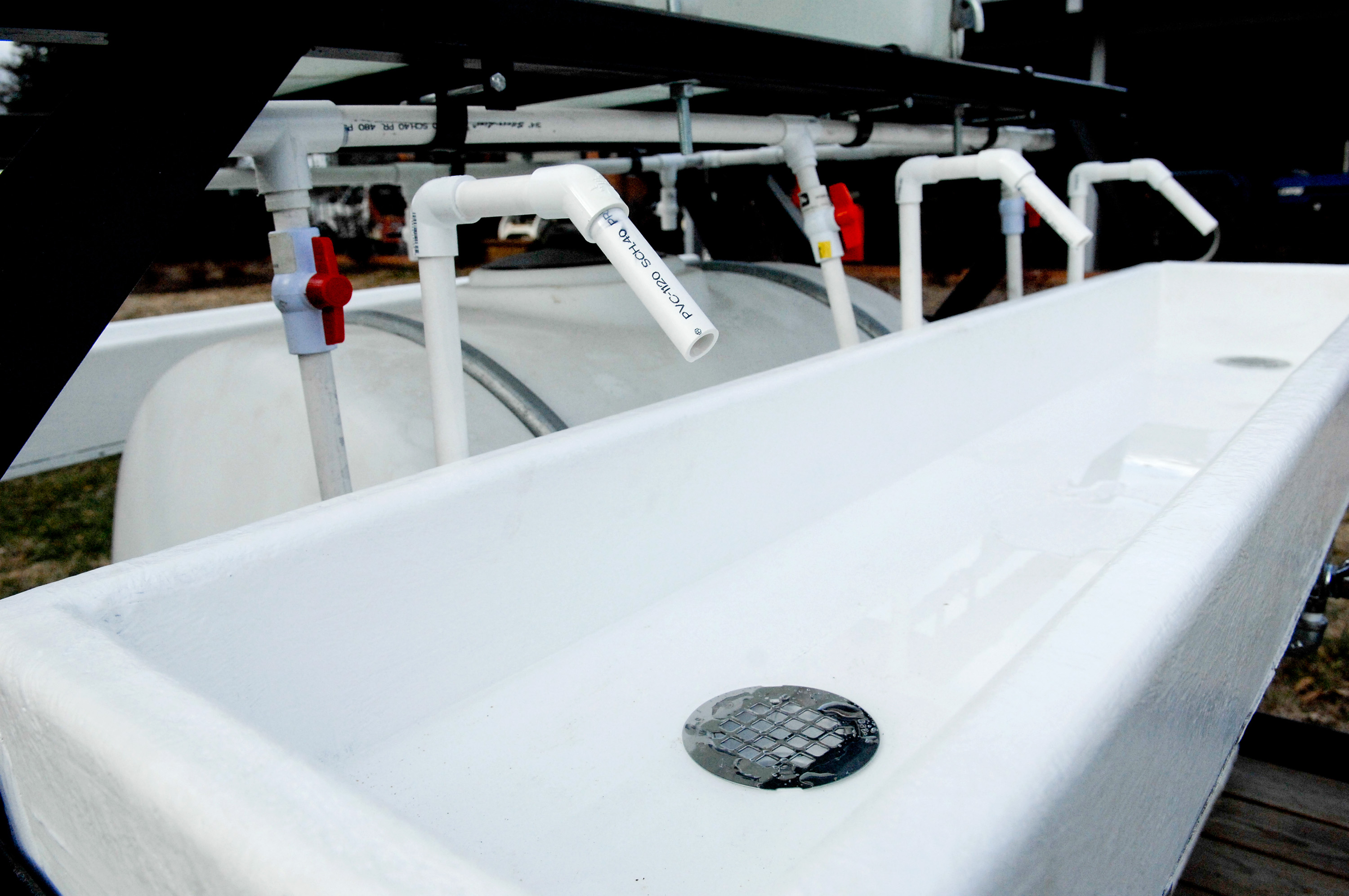

Drains are placed at each end of the sinks to ensure proper water drainage regardless of terrain and how level the trailer is positioned.

hand-wash-station-033

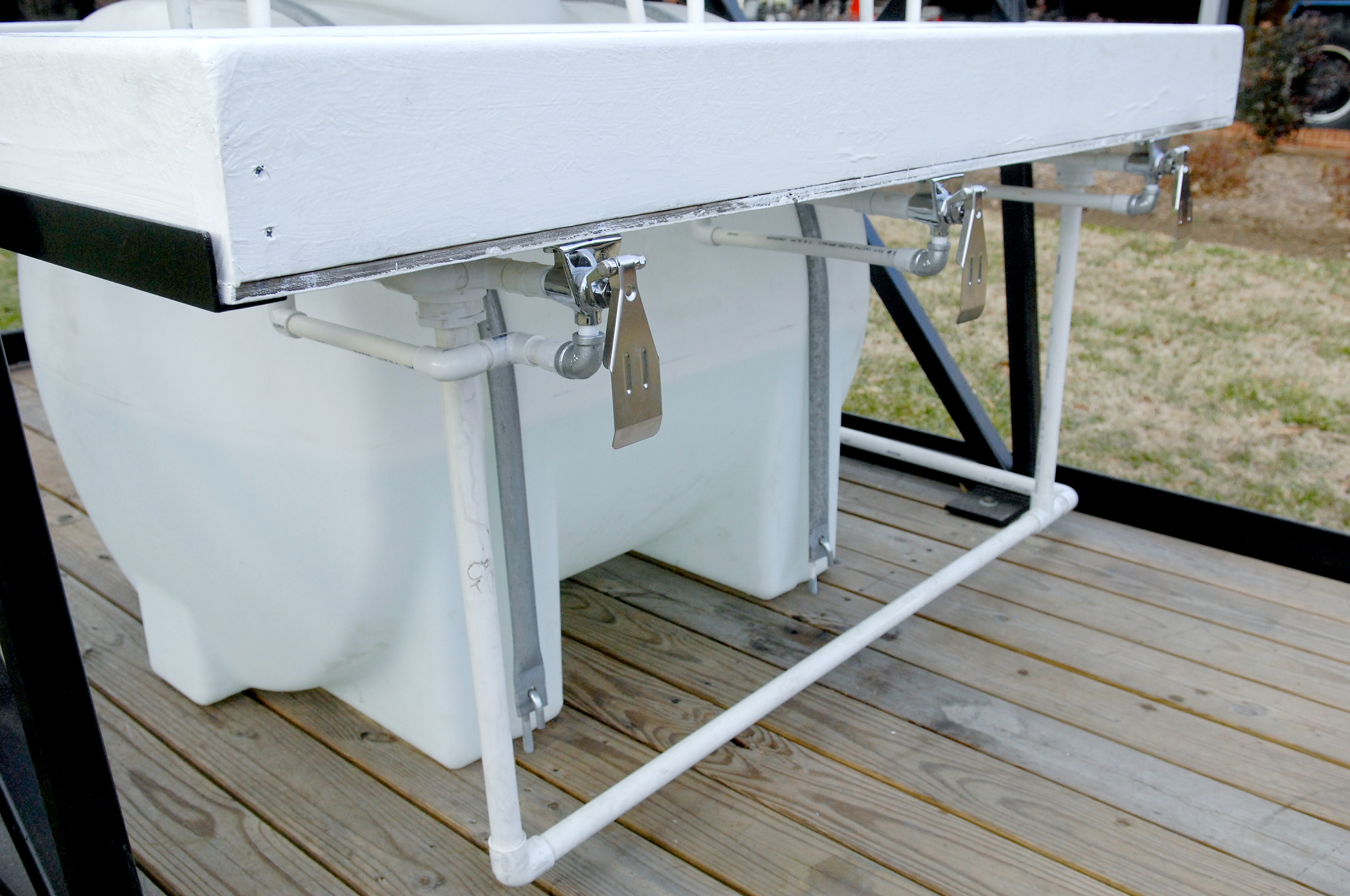

The sink is operated by knee valves that control the flow of water for washing hands when pressed with the leg/knee. The hands-free operation reduces the risk of contamination from touching traditional faucets with the hands.

Demonstrating how the knee valves control the flow of water into the sinks. Standard soap dispensers can be attached to the sinks or secured to the trailer for convenience.

IMG_0025

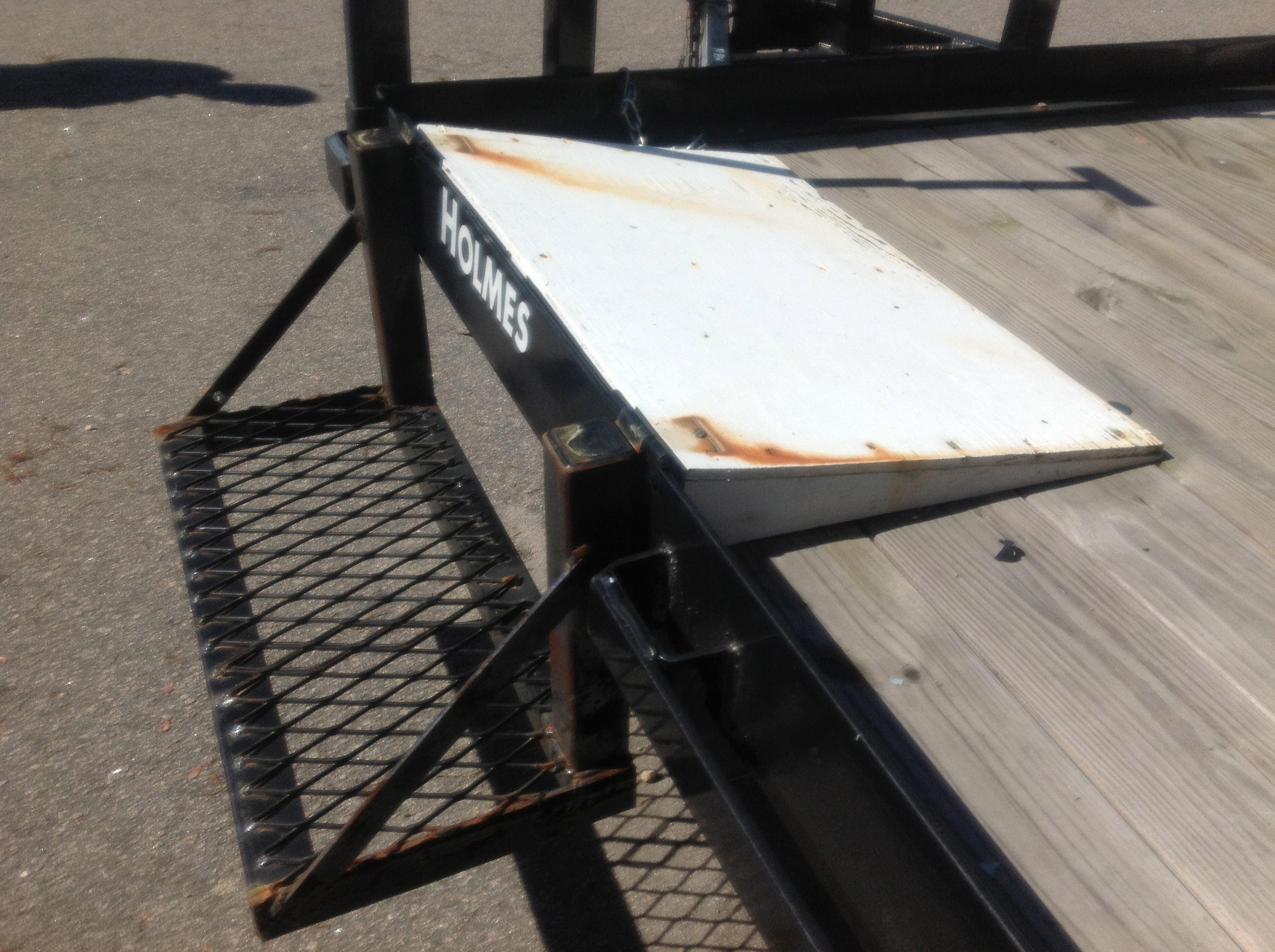

A step was added to the trailer for ease of access, plus the step-up design keeps workers out of dirty field conditions when sanitizing their hands. The ramp at the top of the step is to prevent people from tripping while stepping down.

hand-wash-station-079

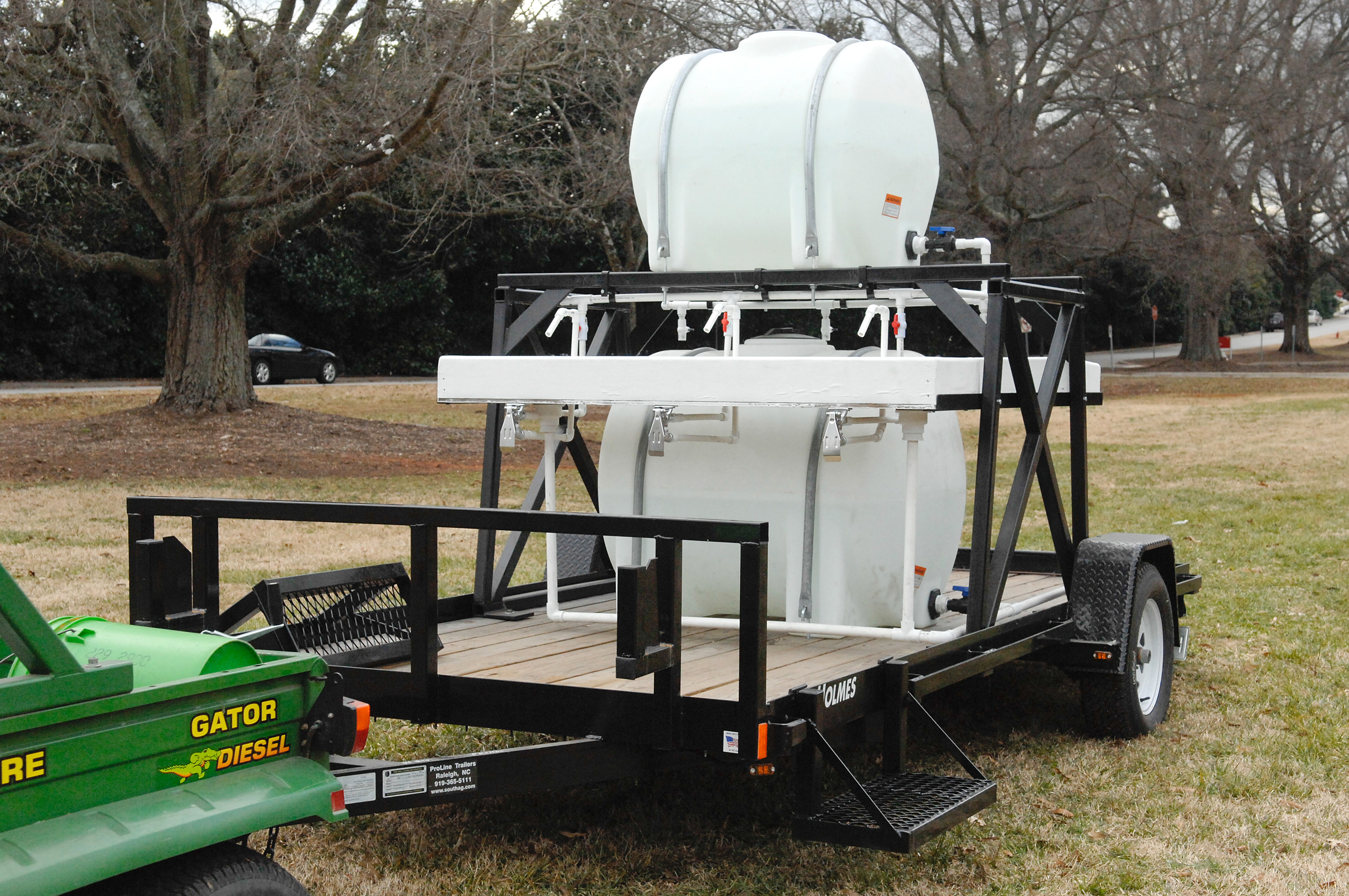

The completed hand-washing unit sits on the trailer ready for use in the field. A couple additional details to note:

  • Water tanks can be purchased in a black color to reduce the growth of algae.
  • Keep in mind that the drain tank should be 2x the size of the supply tank.
  • Possible additions to the unit could include: towel racks, waste receptacles, soap dispensers and hand rails.
